Bosch Fluid Pressure and Temperature Sensor

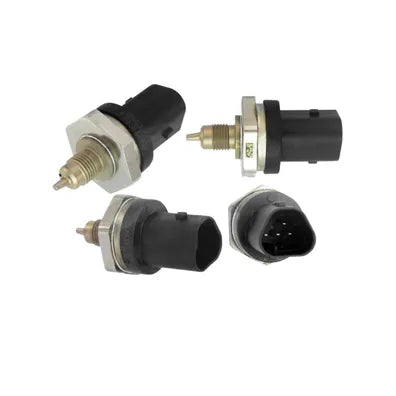

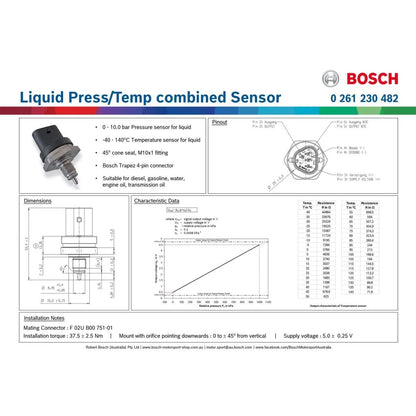

Bosch Liquid Pressure/Temp combined Sensor, 0261230482

• Combined Temperature and Pressure sensor
• 0 - 10.0 bar (145psi) Pressure Sensor for liquid
• -40 - 140 deg C Temperature sensor for liquid
• Bosch Trapez 4-pin connector
• 45degree cone seat, M10x1 fitting
• Suitable for Diesel, gasoline, E85, engine oil, transmission oil
• Supersedes 0261230340 part number

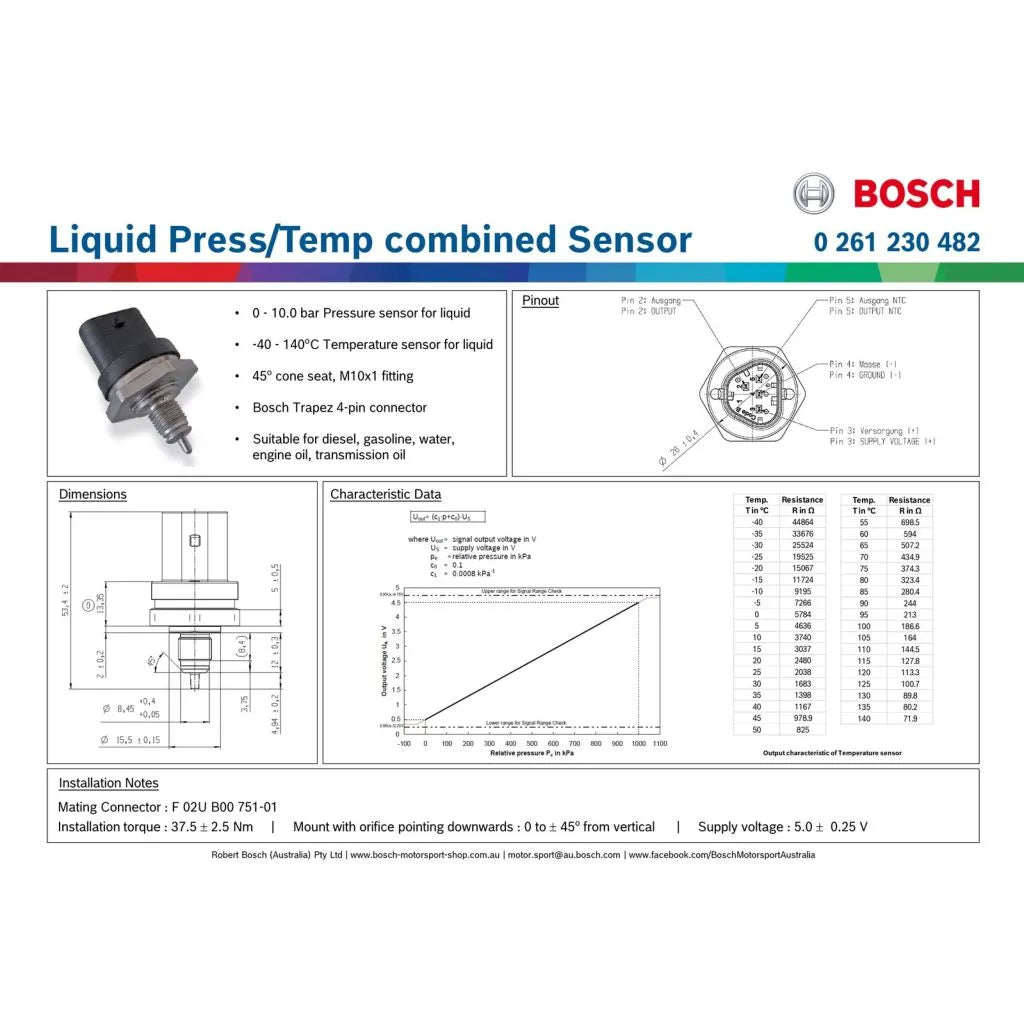

Product Notes;

• Supply voltage: 5.0 ± 0.25 V
• Pin 1: Blank
• PIN 2: Output
• PIN 3: Supply V
• PIN 4: Ground
• PIN 5: Output (NTC)
• Installation torque: 37.5 ± 2.5 Nm
• Mount with orifice pointing downwards : 0 to 45° from vertical

Installation Notes:

• Maximum permissible overpressure is 2000kpa (20 bar). The surrounding system shall be designed in such a way that potential pressure peaks in the system do not exceed the permissible overpressure of the sensor.
• Attention especially needs to be paid to hydraulic effects like cavitation and dynamic pressure shocks. Prevention of cavitation at the sensor shall be ensured in each operating state.
• Disclaimer: Usage in off-Highway-applications and media not mentioned above have not been validated by Bosch.

Please note;

The application advice has recently been revised for this sensor. This change is aimed at limiting damage to the sensor which can be caused by fluid cavitation. As a result, Bosch have issued new guidance to minimise the sensor’s exposure to potential sources of cavitation and have clarified that the validated fluid list does not include water/coolant, which is significantly more susceptible to cavitation than other fluids. Other potential contributors to cavitation are proximity to pumps, flow restrictions, inadequate fluid supply, etc.
