OAP Pulley 53-1058A (A3TG2681) THAILAND
OAP Pullies 53-1058-2A (A3TG2681ZE) SPAIN
Notes:
OUR UNIT HAS A M10 x 1.5 PITCH ON THE LOWER MOUNT THREAD. SOME UNITS HAVE M10 x 1.25 SO THE LOWER BOLT MAY NEED TO BE CHANGED.
| Specifications |
| Voltage |
12V |
| Amperage |
150A |
| Mount Leg ID |
80mm |
| C-C Mounts |
162mm |
| Hole ID Top |
8mm |
| Hole ID Bottom |
10mm, M10 x 1.25 |
| Shaft Size |
|
| Pulley Type |
7PV, CLUTCH |
| Pulley Belt Width |
|
| Pulley Grooves |
7 |
| Pulley Diameter |
65mm |
| Regulator Type |
INTERNAL |
| Series |
|

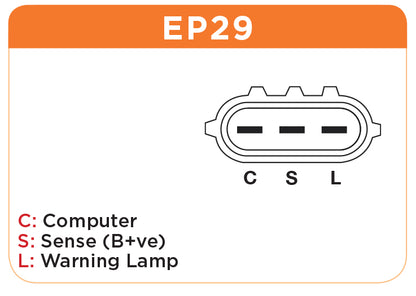

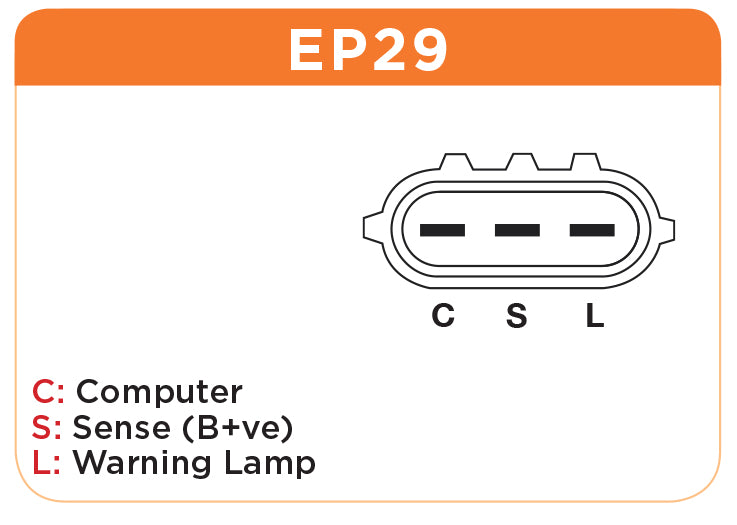

| Connections Plug # |
EP29 |
| Terminals |
B+, C, S, L |
| Excitation |
EXTERNAL |
| Ground |
NEGATIVE |
| Weight (Kg) |
8.0kg |
