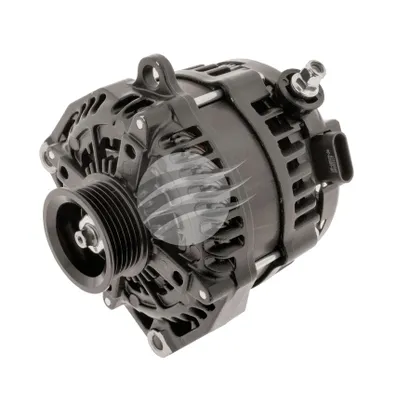

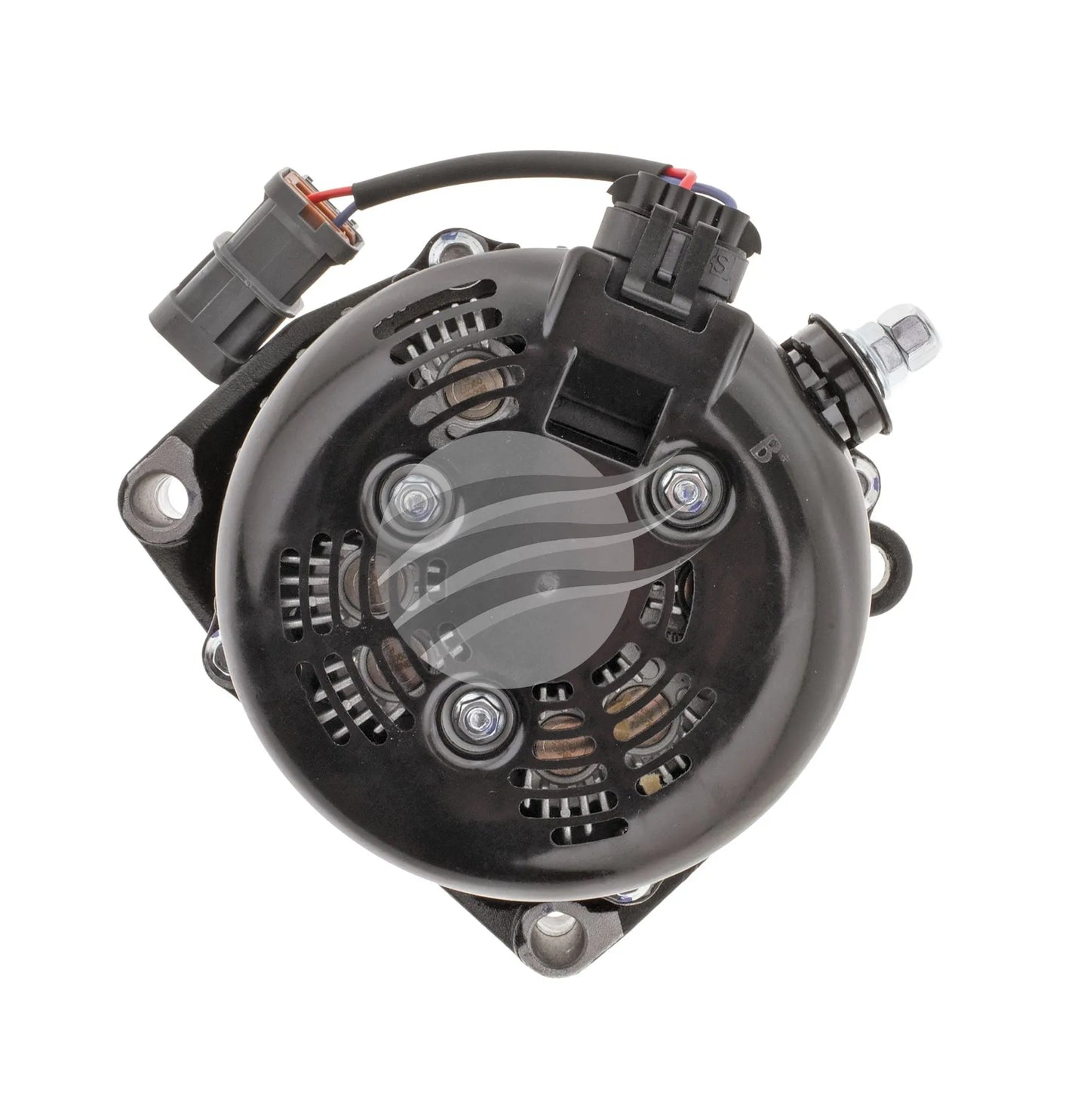

ALT 12V 215A, GM, LS1, HOLDEN, UNIVERSAL TYPE APPLICATIONS

ALT 12V 215A, GM, LS1, HOLDEN, UNIVERSAL TYPE APPLICATIONS

$699.00
$699.00
Sale Sold out
Tax included.
Voltage 12V

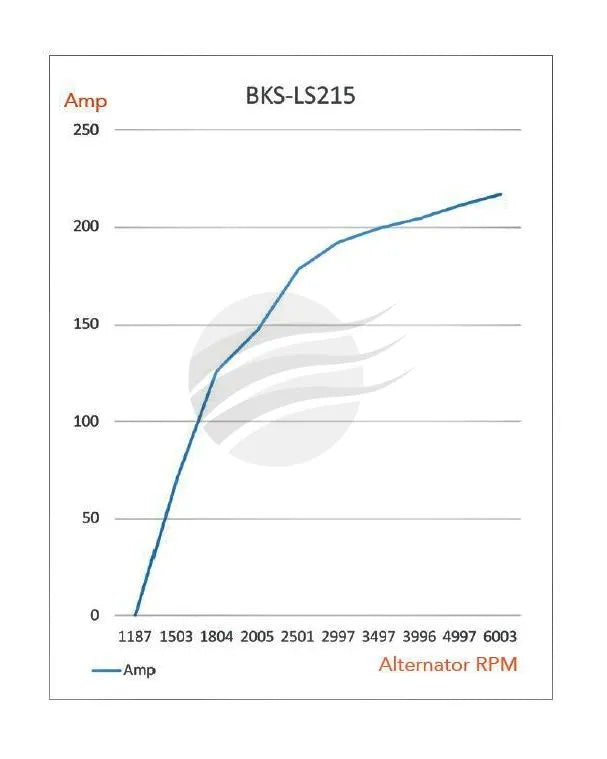

Amperage 215A Hot (96c) 231A Cold (40c)

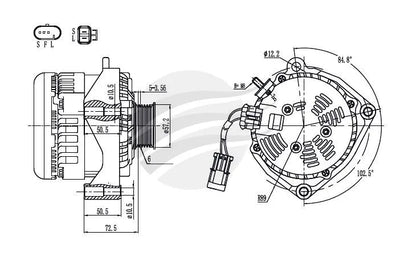

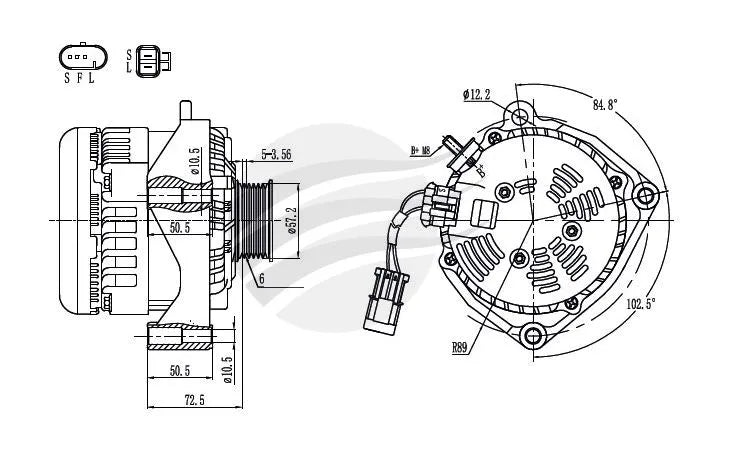

Mount Leg ID 56mm
C-C Mounts 139mm
Hole ID Top 10mm
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type 6PV, FIXED
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 61mm
Regulator Type INTERNAL
Series
Connections Plug # EP39
Terminals B+ L, S
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg) 7.7kg
