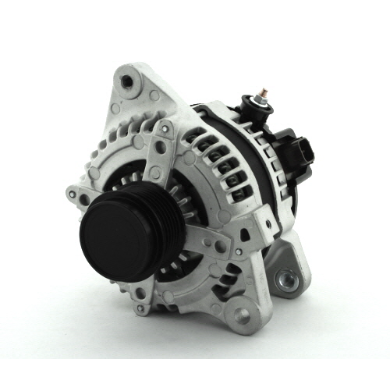

Alternator 12V 100A, COROLLA ZRE152R 2ZRFE, YARIS 1.6L 04-07
Alternator 12V 100A, COROLLA ZRE152R 2ZRFE, YARIS 1.6L 04-07
Regular price
$379.00
Regular price
Sale price
$379.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
MATCH BY OE NUMBERS ONLY. THERE ARE MANY REG VARIATIONS
| Specifications | |
| Voltage | 12V |
| Amperage | 100A |
| Mount Leg ID | 57mm |
| C-C Mounts | 175mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 10mm, M10 |
| Shaft Size | |
| Pulley Type | 6PV, CLUTCH |
| Pulley Belt Width | |
| Pulley Grooves | 6 |
| Pulley Diameter | 60mm |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP35 |
| Terminals | B+, S, IG, M(FR), L |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 7.0kg |
|
