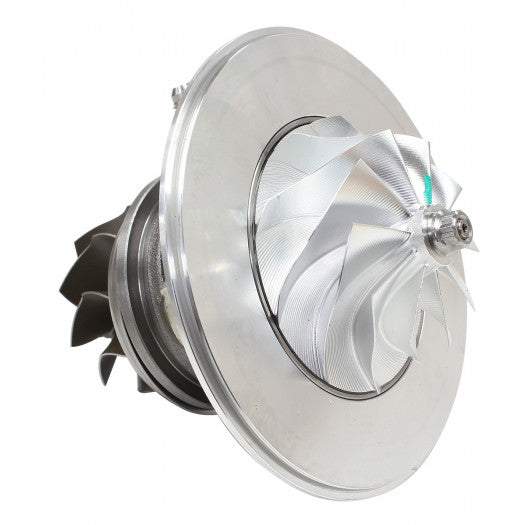

BOOSTED 6662 Core Specifications

Recommended horsepower rating:  450-900HP
Recommended engine displacement:  2.0L to 4.5L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  66mm
Exducer:  82mm
Extended Tip:  87.5mm

Turbine Specifications
Inducer:  68mm
Exducer:  62.3mm

Wastegate
External wastegate or Internal wastegate depending on application.
