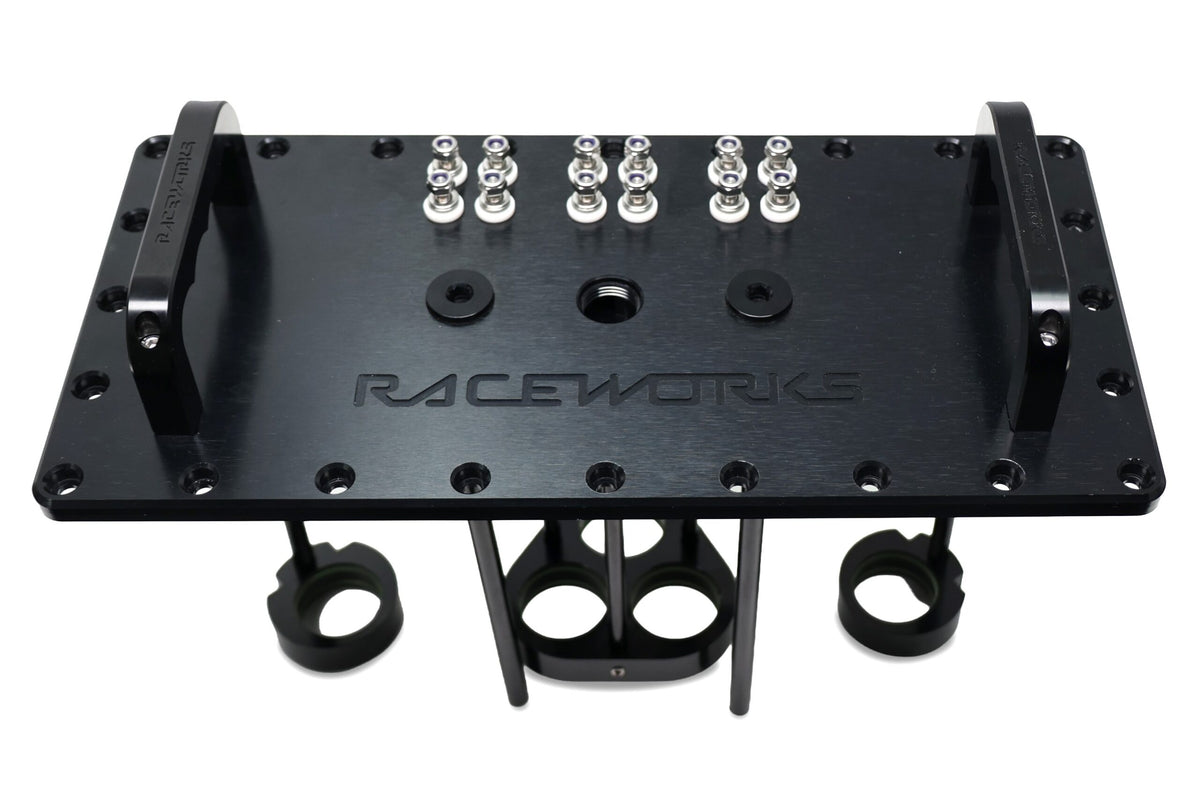

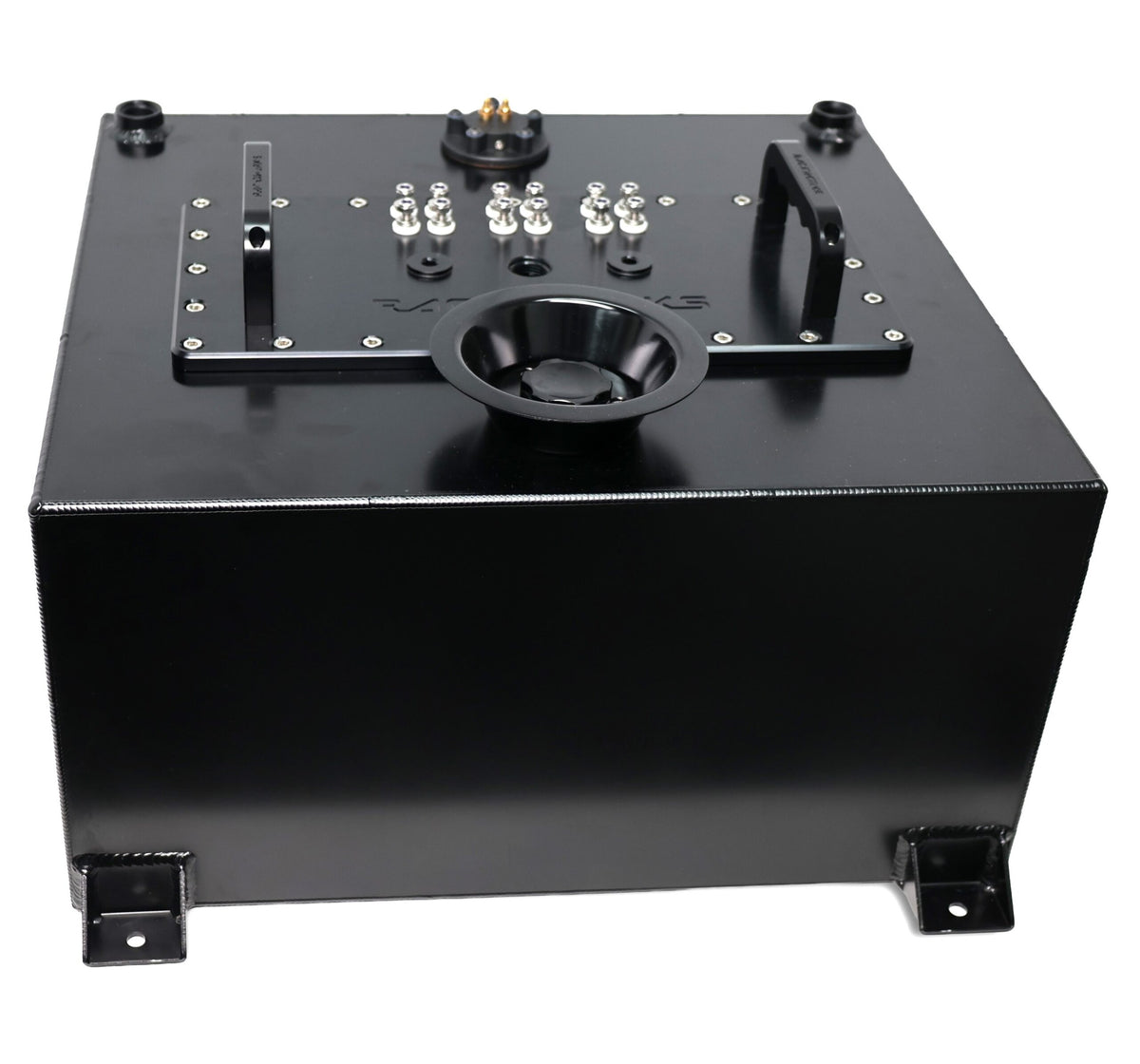

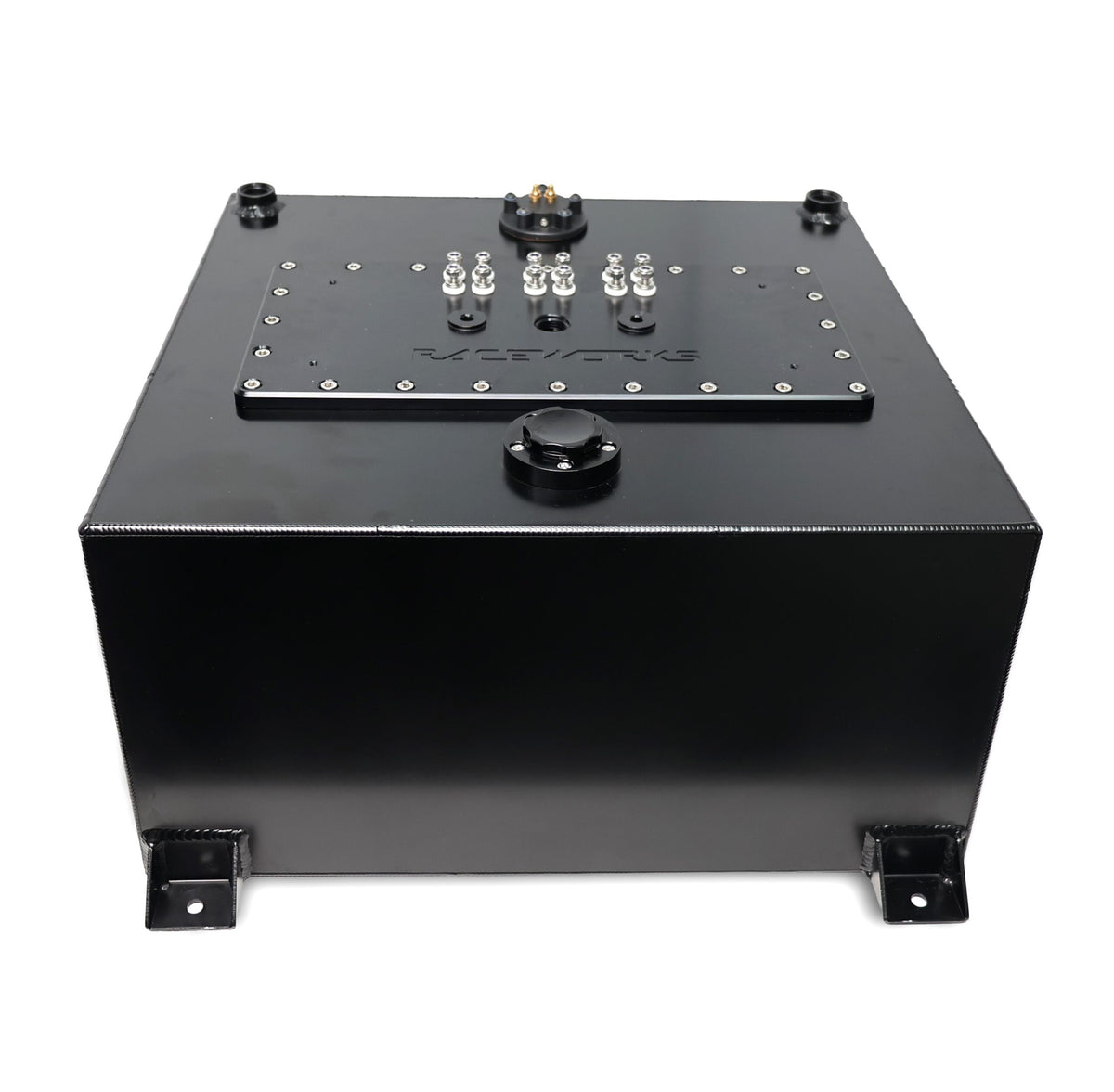

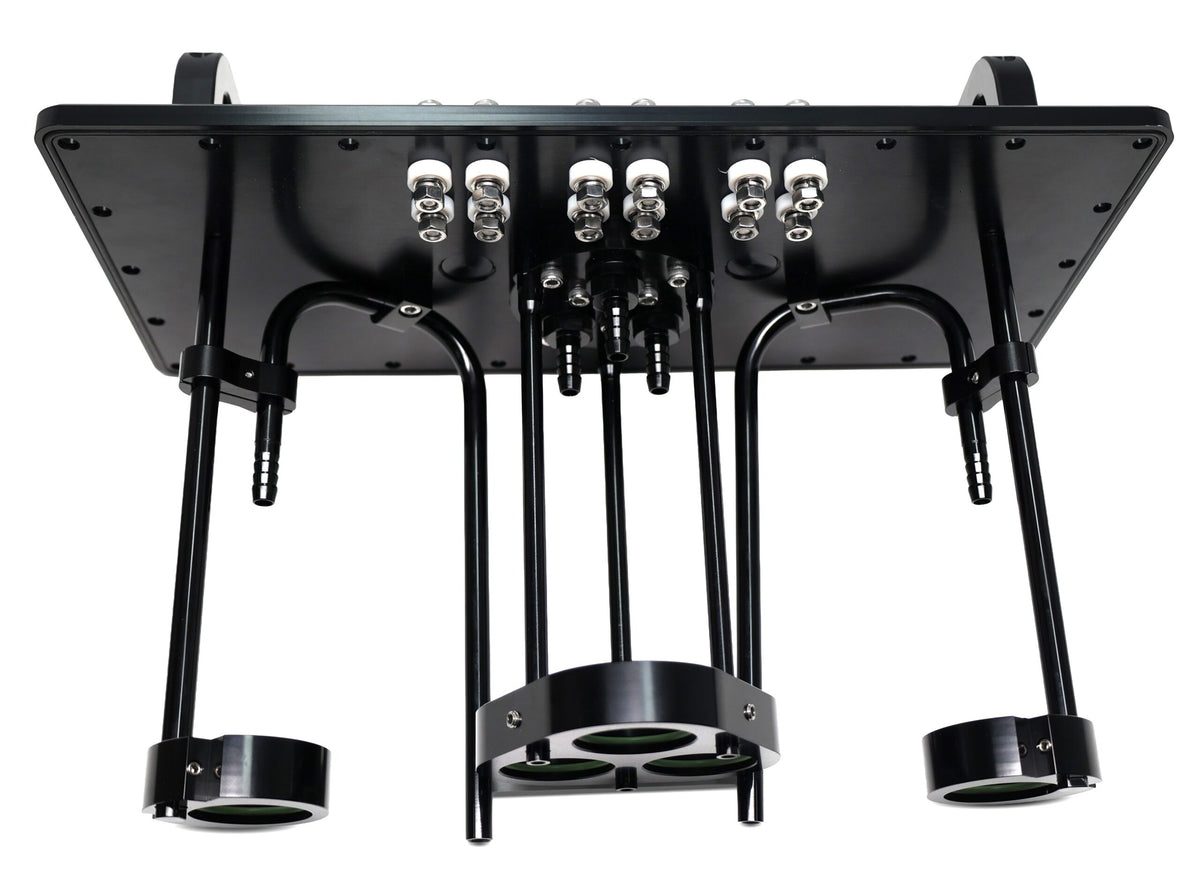

57L Total Volume – 4.4L Capacity internal Surge Tank Singe AN-10 ORB Feed (new vortex design to promote flow) 4x AN-10 ORB Return/Vent Options (2 on tank, 2 in hanger) Internal Built Supply line 6x sets of Stainless Steel Electrical Terminals Installed – This allows to be able set up wiring in many different configurations. Eg. (2 x lift pumps, 3 x staged feed pumps) or (1x lift pumps, 2 x PWM controlled) or (2 x lift pumps 1 x feed pumps 1x PWM controlled) The options are endless Supplied with 2x Terminal Blanking Plugs (FSA-521) Replacement Hanger O-Ring (RWM-030) Features Viton O-rings and Teflon in-tank hose suitable for E85 & Methanol Comes with 2 sets of O-rings to allow for 38mm & 39-40mm fuel pumps (pre-fitted to suit 39-40mm) Removeable spill tray & hanger lifting handles (pre-fitted) Heavy Duty construction, with reinforced baffling and 6mm wall thickness Height – 510 mm Depth – 195 mm – Height 260 mm (This is a direct bolt in replacement for ALY-272BK & ALY-273BK
