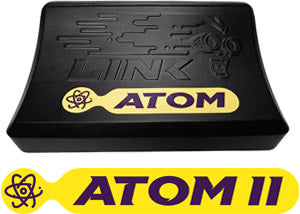

Link G4+ ATOM II

Link G4+ ATOM II

$1,314.50
$1,314.50
Sale Sold out
Tax included.

Link are redefining what an entry level ECU should be.

The Atom runs on the proven Link G4+ platform, has full configurability and is rated to IP67, making it dust and waterproof.

The Atom can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. This makes it ideal for naturally aspirated engines that just need a retune and don’t need all the extra sensors and features that come with our higher level ECUs.

Input

  • 2 x Digital inputs
  • 2 x Temperature inputs
  • 3 x Analog inputs
  • 2 x Trigger inputs

Outputs

  • 4 x Injection drives
  • 4 x Ignition drivers
  • 4 x Auxiliary outputs*
  • +5V Sensor power supply

* unused ignition drives can also be used as auxiliary outputs

Communications

  • 1x CAN bus
  • 1 x thirty four pin, waterproof connectors
  • 1x USB tuning connection

Misc.

  • Comes loaded with all of Link ECU’s standard features
  • Onboard barometric pressure sensor
  • 32Mb (4 MByte) of logging memory
  • 20 general purpose tables
  • Runs on PC Link software.

All Link ECUs (Engine Control Units) are 100% New Zealand designed and developed. We also offer a limited lifetime warranty so if your ECU breaks in the normal course of its designed use then we’ll repair or replace, no questions asked.
