Maradyne Champion Series Fan - 14" 1555cfm
Maradyne Champion Series Fan - 14" 1555cfm
Regular price
$285.00
Regular price
$299.00
Sale price
$285.00
Unit price
per
Tax included.
Couldn't load pickup availability

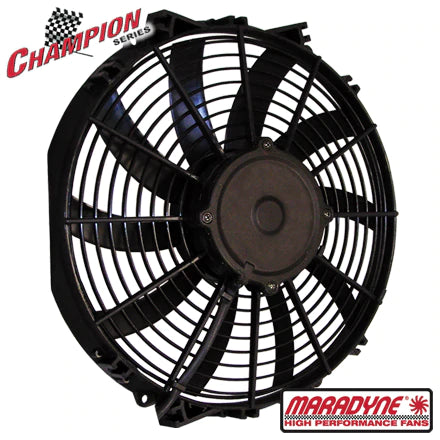

Maradyne Champion Series Fan - 14" / 356mm Skew 12V - 1555 CFM - 160W
The M146K (EF8914) 12v 14" Maradyne Champion Series Fan features a reversible blade design which is rated up to 1555cfm / 2642m3/h in the standard puller configuration.
The Maradyne Champion Series EF8914 14" Thermo Fan features a fully-sealed 160W motor (IP68) of superior quality and is backed with a 12-month manufacturers warranty (see below).
| M146K 12V 14" 160w THERMO FAN DETAILS | |
|---|---|
| Fan Model # | M146K |
| Fan Series | Champion Series |
| Voltage | 12V |
| Motor | 160W |
| Flow Type | Puller or Pusher (ships as puller) |
| Blade Diam. | 14 inch (355mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 10.1 |
| CFM | 1555 |
| M3/H | 2642 |
| Included in Box |
|
| M146K 12V 14" 160w THERMO FAN DIMENSIONS | |
|---|---|
| A | 367mm / 14.45" |
| B | 382mm / 15.04" |
| C | 297.2mm / 11.7" |
| D | 420.4mm / 16.55" |
| E | 73mm / 2.87" |
 |
|
