Haltech

Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX / STI MY11-19 (Australian Delivered Models Only)

Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX / STI MY11-19 (Australian Delivered Models Only)

$3,734.99
$3,734.99
Sale Sold out
Tax included.

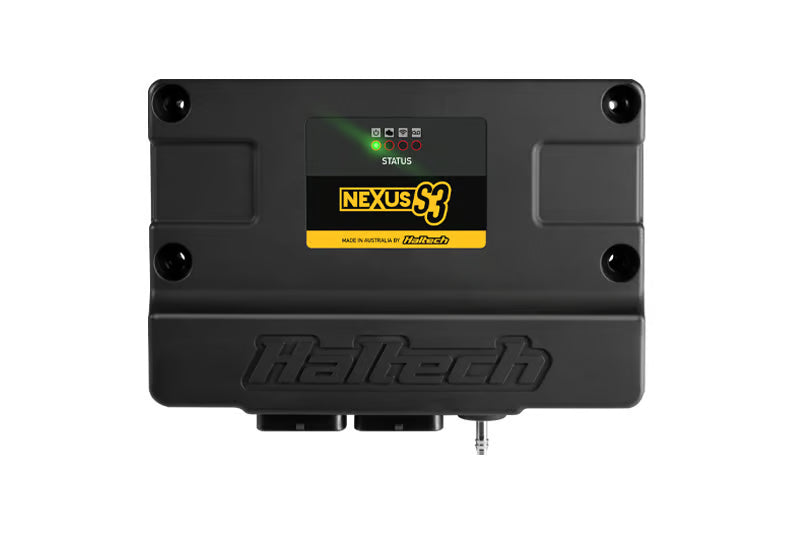

ECU OVERVIEW
Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
  • Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

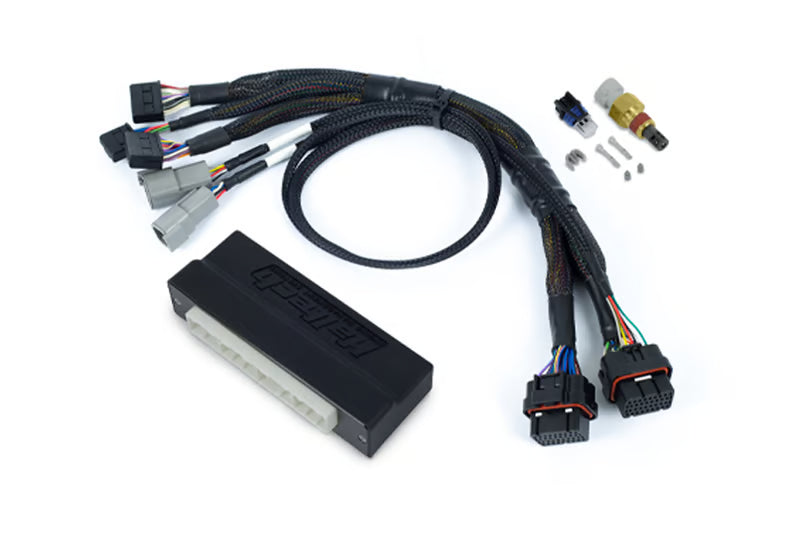

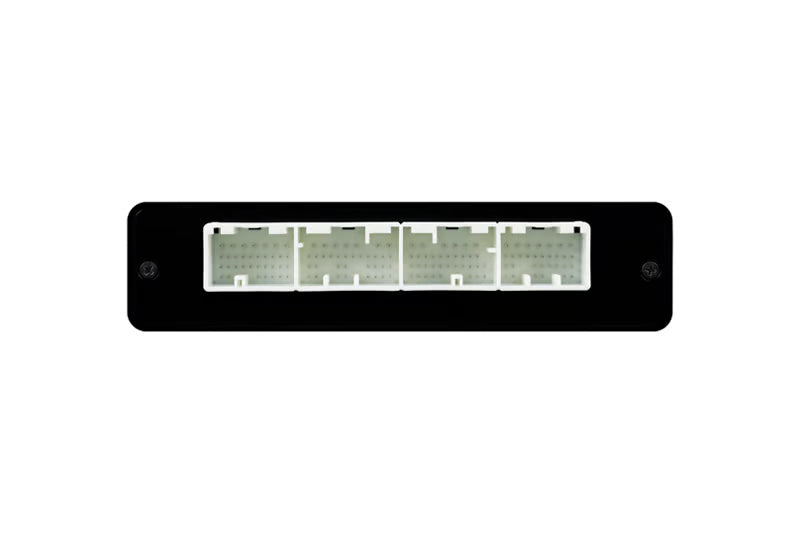

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
  • A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.

Suits: Plug 'n' Play replacement of the factory ECU for Subaru WRX STI VA MY11-19 Australian Delivered. Includes WRX GE/GH MY11-14 ADM, WRX STI GE/GH MY 11-14 ADM, WRX GV/GR MY11-15 ADM (excluding 2013), and WRX STI VA MY15-19 ADM. Manual transmissions only.

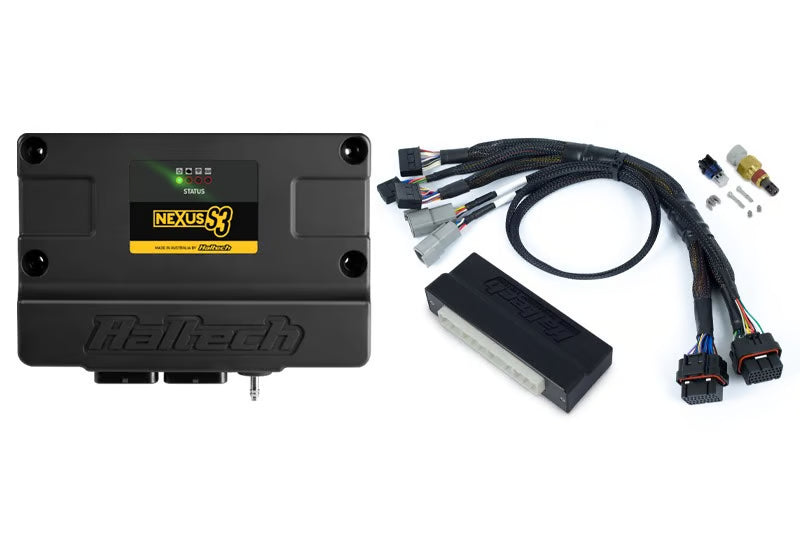

Includes: Nexus S3 ECU, Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Australian Delivered Models Only
