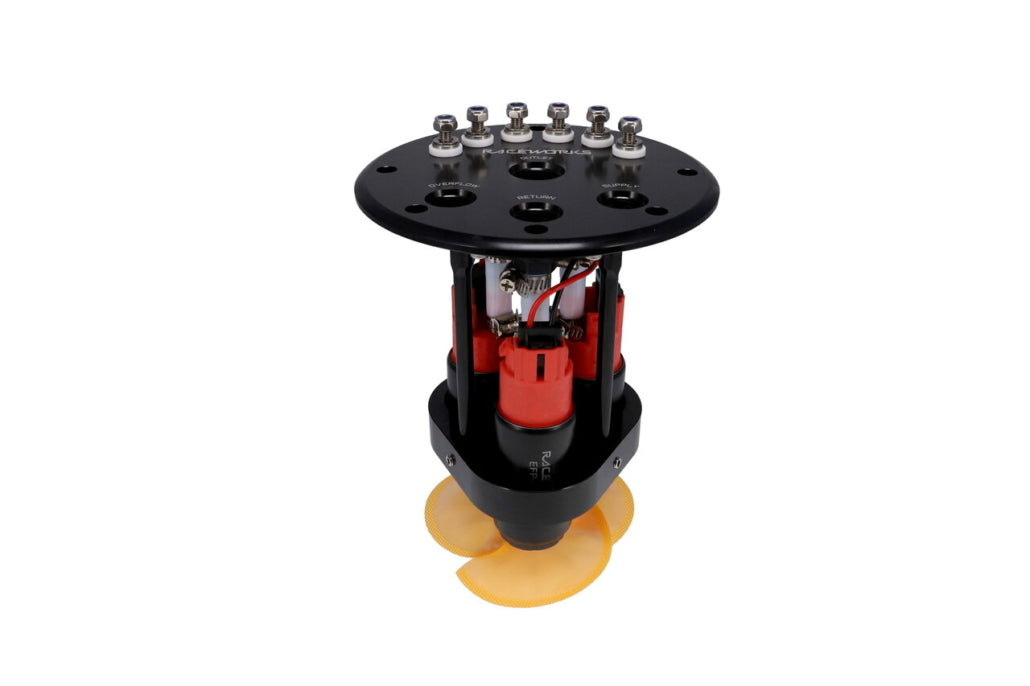

Raceworks 2.8L Triple Pump Surge Tank 1500hp Capable

Description

Raceworks 2.8L Triple Pump Surge Tank 1500hp Capable.

The Raceworks 2.8L Triple Pump Surge Tank is engineered for high-power street and motorsport builds. Featuring an in-tank triple pump design, it offers smooth and quiet operation with separate terminals for staging and an AN-10 O-Ring output for reliable flow under extreme conditions.

Triple Pump Ready – can be configured with 1, 2, or 3 in-tank pumps, staged independently using triple stainless steel electrical terminals. Staged pumps with no inbuilt check valve need to run inline check valves, available separately.

Features

• CNC-machined alloy with hard wearing black anodised finish
• Compatible with all 39mm body pumps, such as
  • Raceworks EFP-500 & 501 (340lph x3)
  • Walbro 255 / 460 (460lph x3) / 525 (525lph x3)
  • Walbro 535 (with check valve)
  • Various other 39mm body pumps
• E85 Compatible Viton O-Rings and Teflon in-tank hose for ethanol or 98 fuel

Specifications

• Fittings:
  • AN-10 ORB Feed
  • AN-8 ORB Return, Supply, and Overflow
  • Supports up to 150-degree fittings
• Includes: 3 Fuel Pump Strainers
• Dimensions: 205mm (Height) x 180mm (Width)
• Fuel Capacity (approx):
  • 2.8L with single pump
  • 2.6L with dual pumps
  • 2.4L with triple pumps

When reliable fuel delivery is your number one priority on the track and strip, a quality surge tank is your first line of defence against sustained lateral loads. Raceworks Surge Tanks have been crafted to meet the most extreme street and track conditions, and are welded from 5052 aluminium. They are presented with a tough, high polished finish or polished black anodised coating, and all inlet and outlet AN fittings are precision machined and tested for leak-free installation.

All Raceworks products come with a 2 year warranty.

Raceworks Part Number: ALY-059BK
